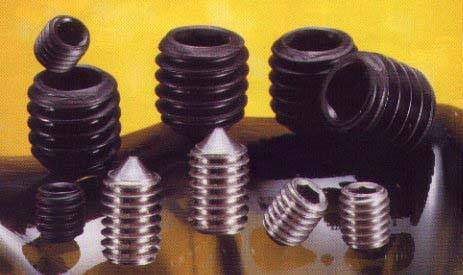

HEX SOCKET SET SCREWS / GRUB SCREWS


ZIP have developed Hexagonal socket punch ('Allen key punch') type Set Sc/Grub Sc, Flat point, Cone point, Half full and extra long Dogpoint Tapper Dog point, Knurled cup point ovel/Radious point - R. H.. & L. H. Adjesting Sc. 3mm to 30mm 1/8 to 1a 6BA to OBA, 4 No to 12 No. NC - NF, BSP 1/8 to 2" dia. BSPT 1/8 to 2" dia. NPT - NPTF 1/16" to 2" dia.

STANDARD REF

It can be supply as per IS, BS, JIS, ISO, GOST, ASTM and DIN Standard. Some non Standard as per drawing or sample.

THREADS DETAILS

STD Coarse Fine pitch m.m. Size , BSW, BSF, BSP, UNC, UNF BA, No size 4 to 12 NC & NF, BSPT, NPT & NPTF.

GRADE

M. S. 4.6, EN-8 6.6, EN-19 10.9, EN-24 12.9, SS 304 and 316 SS 410 Brass. Possible to Supply 'SURSULF' liquid Nitriding and Nitrocarburising process.

APPLICATION ARE

Above Hardware items used at Machine Tools Industries, Light and Heavy Eng Ind. Automobile, Tractore, Textile. Hydraulic Pnematics, Aircondition, Generators. Trolly - Traillors, Refrigerators, pumps valve Electrical Electronics papper Machinery plant. etc other Service Industries.
