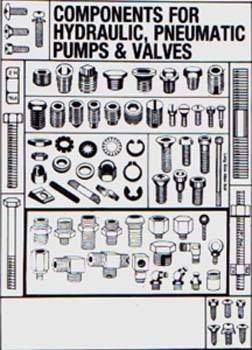

FASTNERS HARDWARE ITEMS FOR HYDRAULICS, PNEUMATICS, PUMPS & VALVES

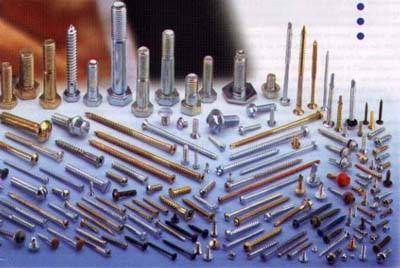

ZIP have developed some fastners threaded hardware items which are use full for Hydraulics, Pneumetics, pymps and valve units components are, BSP, BSPT, NPT, NPTF, M. M size Hex Socket type straight and Tapper plugs, Sq head and Hex head type Sq head plugs, Hex socket type Allen plugs / Closser plugs. Hex hd flanged / coller plugs. Hex thin head plain plugs. Copper packing washers Nylon and PVC washers. Long size 4 mm 5 mm 6 mm 8 mm 10 mm dia. x 40 mm to 280 mm long Allen Bolt, HTS Nuts, lock nuts, Hex head bolt, Screws, Stud, Full thread spindle, Eye Bolt, T-Bolt, T Nut, Machine washwers. Star washer, Dowel Pin, Tapper Pin Grooved Pin, Circlip etc. items. Pressure plugs, Fine pitch, Hex head Sc - Bolt, Sc. with internal threaded tapping.

STANDARD REF

It can be supply as per IS, BS, JIS, ISO, ASTM, GOST or DIN Standard. If non standard then as per drawing sample.

THREADS DETAILS

M. M. Size std coarse and fine pitch, BSW, BSF, UNC, -UNF BA, BSP, BSPT, NPT, NPTF and No size 4No to 12 No NC-NF threads, Tapper thread plugs.

GRADE

M. S. 4.6, HTS, EN-8, 6.6, -8.8, EN-19-10.9, En-24, -12.9, Brass SS 304 - 316 A-193 B7, A-194 2H, R-S-T-V grade, possible to supply with "SURSULF" liquid Nitriding and Nitrocarburising Process.

APPLICATION

Above hardware items used at Pumps, Valves, Hydraulics, Pneumatic, Machine Tools, Automobiles Tractors, Trailors, Trolly etc. other Service Industries.
